Sodium Hypochlorite Generation System

Product Description:

Sodium hypochlorite generation system is a kind of water treatment disinfection and sterilization equipment. The equipment uses salt water as raw material and generates sodium hypochlorite solution through an electrolytic reaction.

Sodium hypochlorite generation system is a strong oxidant and disinfectant, which is produced by electrolysis without a diaphragm, and is derived from a wide range of inexpensive industrial salts or dilute solutions of seawater. In order to ensure the freshness and high activity of sodium hypochlorite, and to ensure the disinfection effect, the device adds and uses the generated sodium hypochlorite while electrolyzing. It has the same oxidizing and disinfecting properties as chlorine and chlorine compounds.

Sodium hypochlorite generation system is widely used in many water industries fields, such as drinking water disinfection, wastewater treatment, and cooling water treatment.

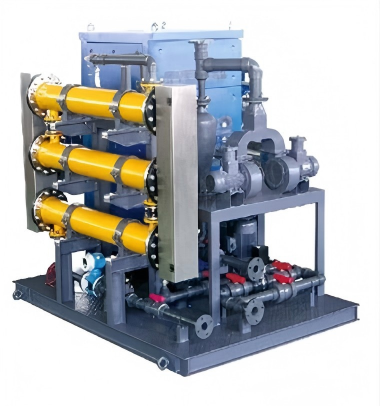

The sodium hypochlorite generation system is producing sodium hypochlorite onsite through 3% -5% brine electrolysis(from the sea before being treated and filtered), and the whole system is a combination of a Booster pump unit, Filtration unit, electrolytic unit, rectifier power supply, automatic control systems, storage and dosing unit, etc.

Application of Electrolyzed Hypochlorite Generator

Seawater Electrolysis(Seawater anti-fouling, Ballast water treatment):

Electrolytic seawater Sodium Hypochlorite Generator using natural seawater, equipped with high speed and on-site produce Sodium Hypochlorite Solution. And the Sodium Hypochlorite solution will be treated with dehydrogenation, then stored and sent to the place, It's an effective solution for killing microorganisms, sea creatures, algae, and bacteria in the water, and preventing the blockage of circulating water pipes, condenser system.

Brine Electrolysis (Sodium hypochlorite generator ):

Sodium hypochlorite generators can produce hypochlorite solution from a brine solution of water and common salt.

The core of the sodium hypochlorite generator is the electrolytic cell, electrode, and power supply, supplemented by a soft water unit, dissolved salt unit, control unit, and other equipment. It can be used in drinking water, industrial circulating water, sewage, and other water quality oxidation, aquarium, farm environment, public environment disinfection, and other technology units.

Characteristics: easy to obtain raw materials, operation stably.
